SC80
sc80s
SC80Pro

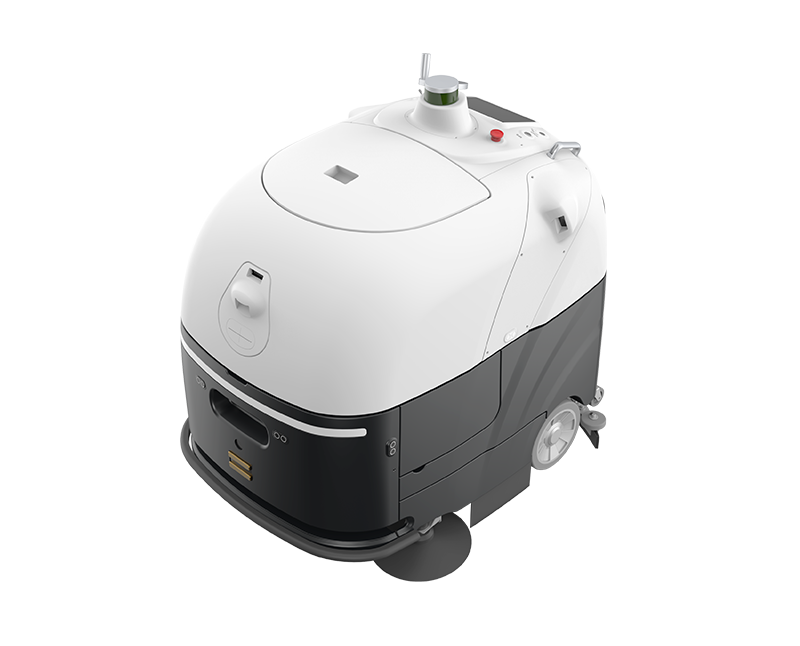

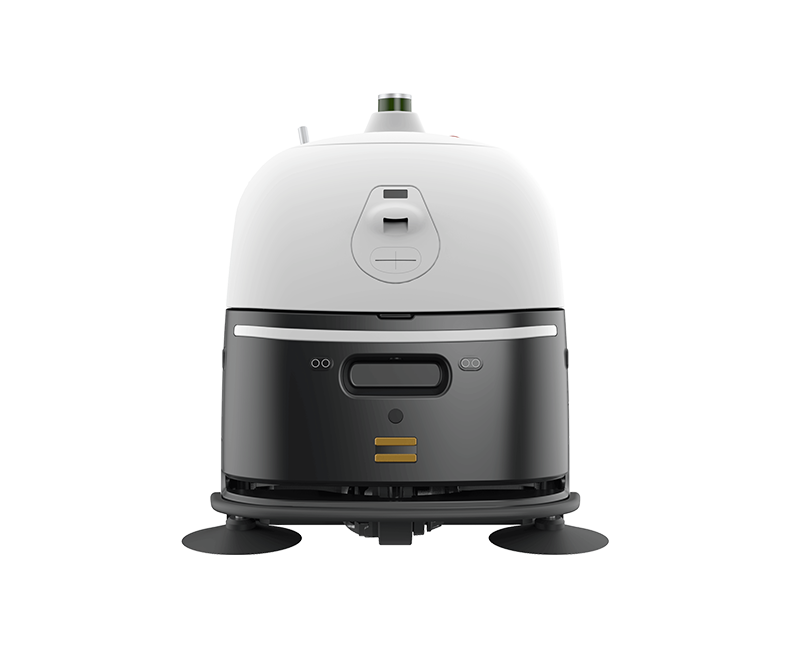

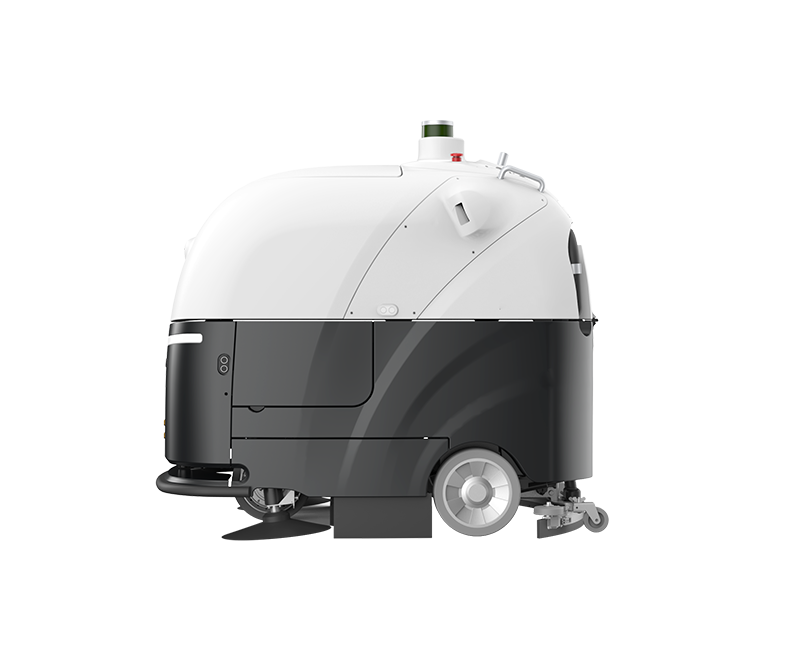

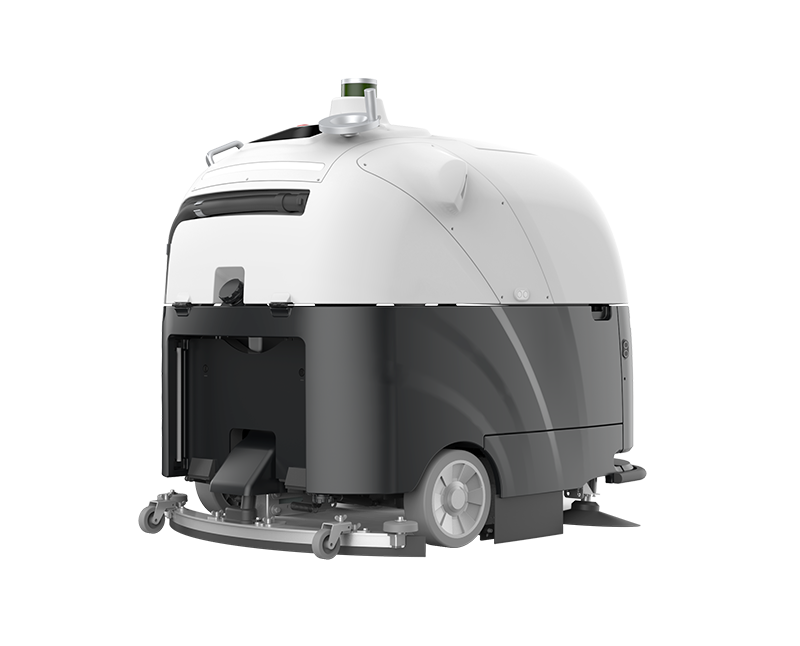

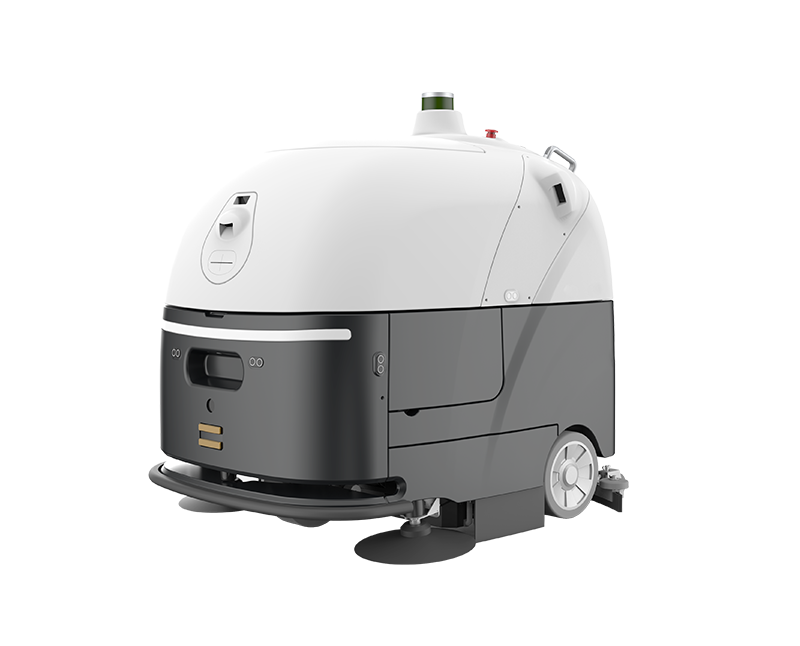

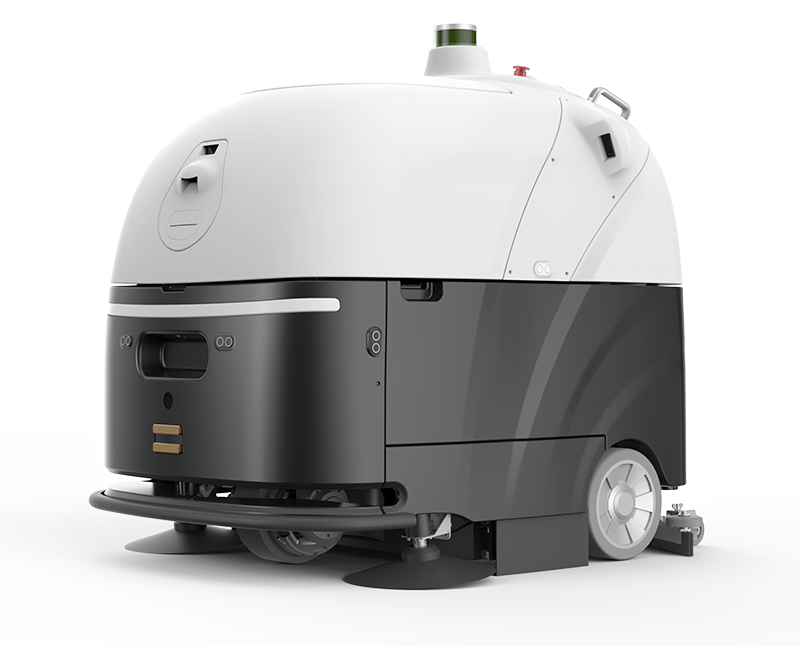

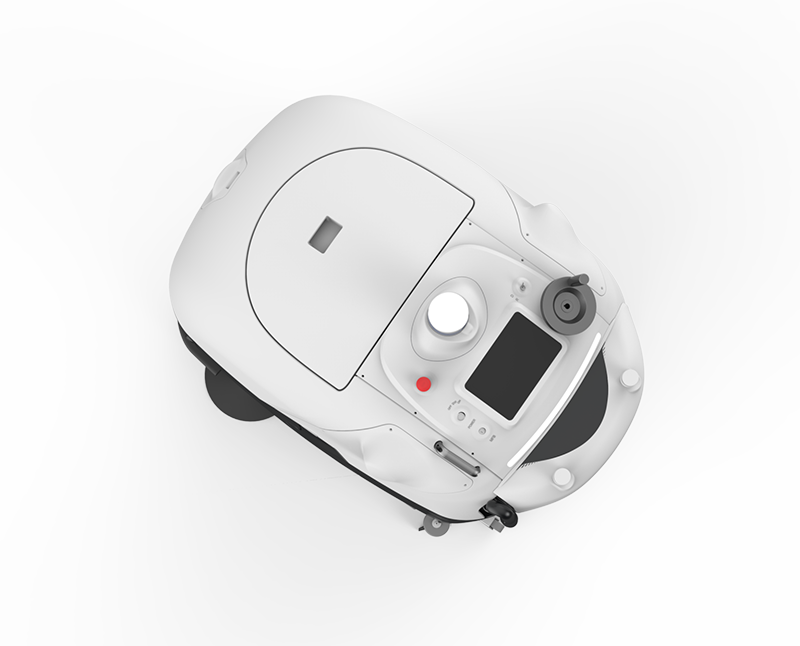

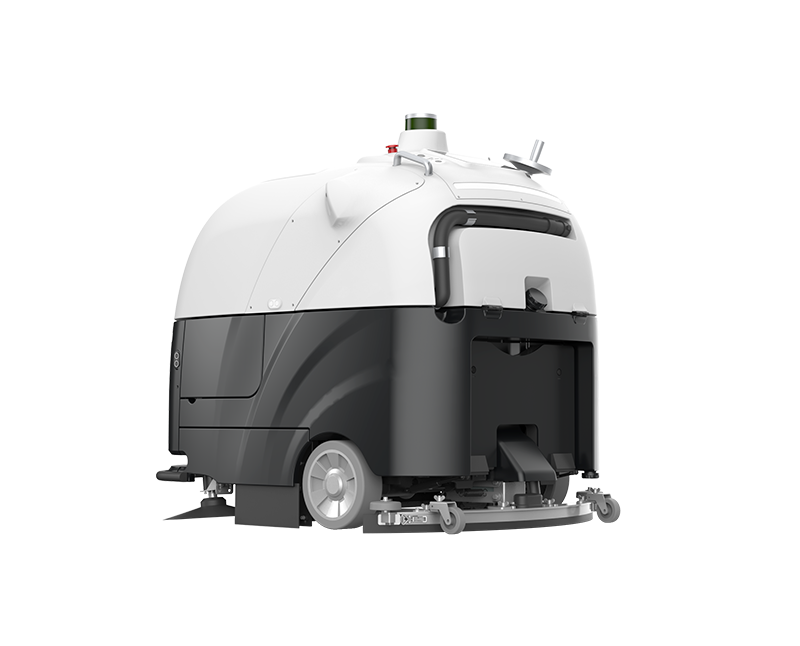

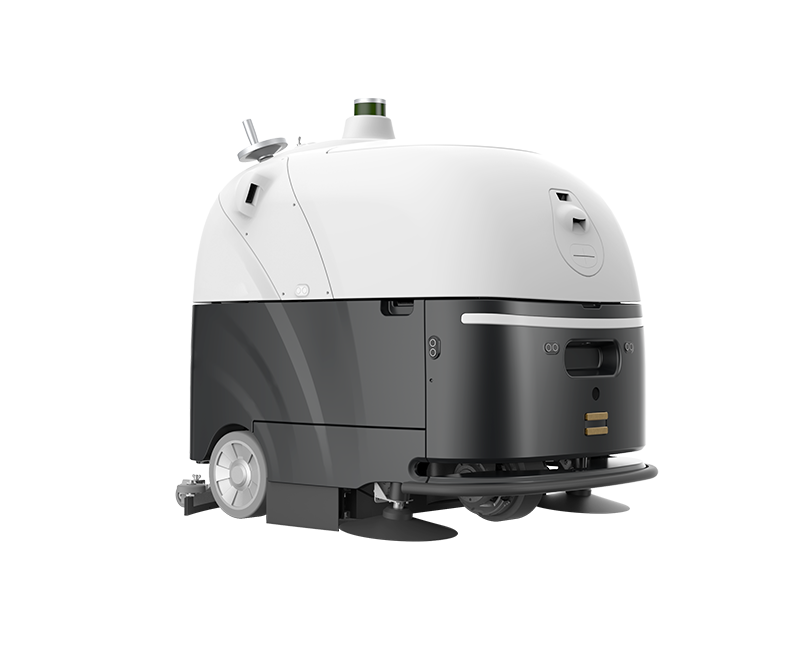

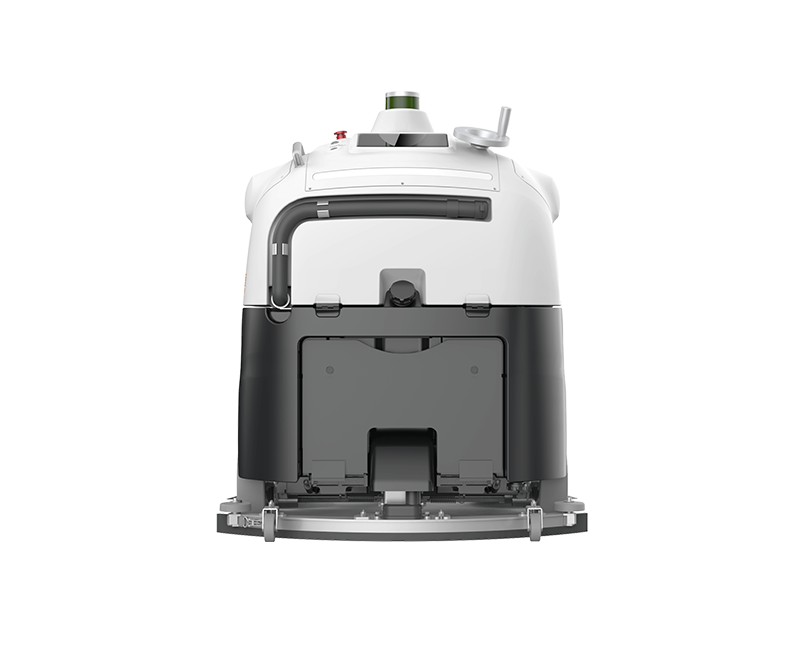

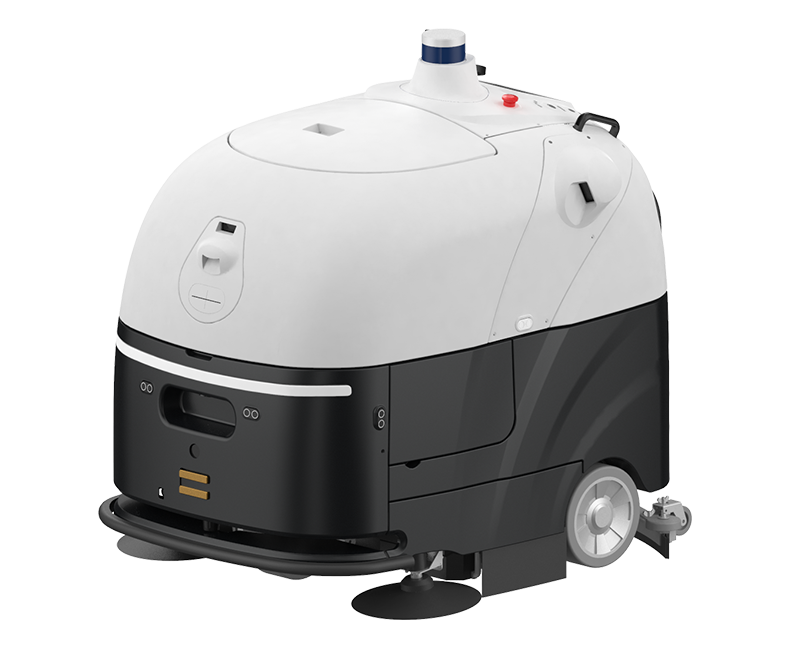

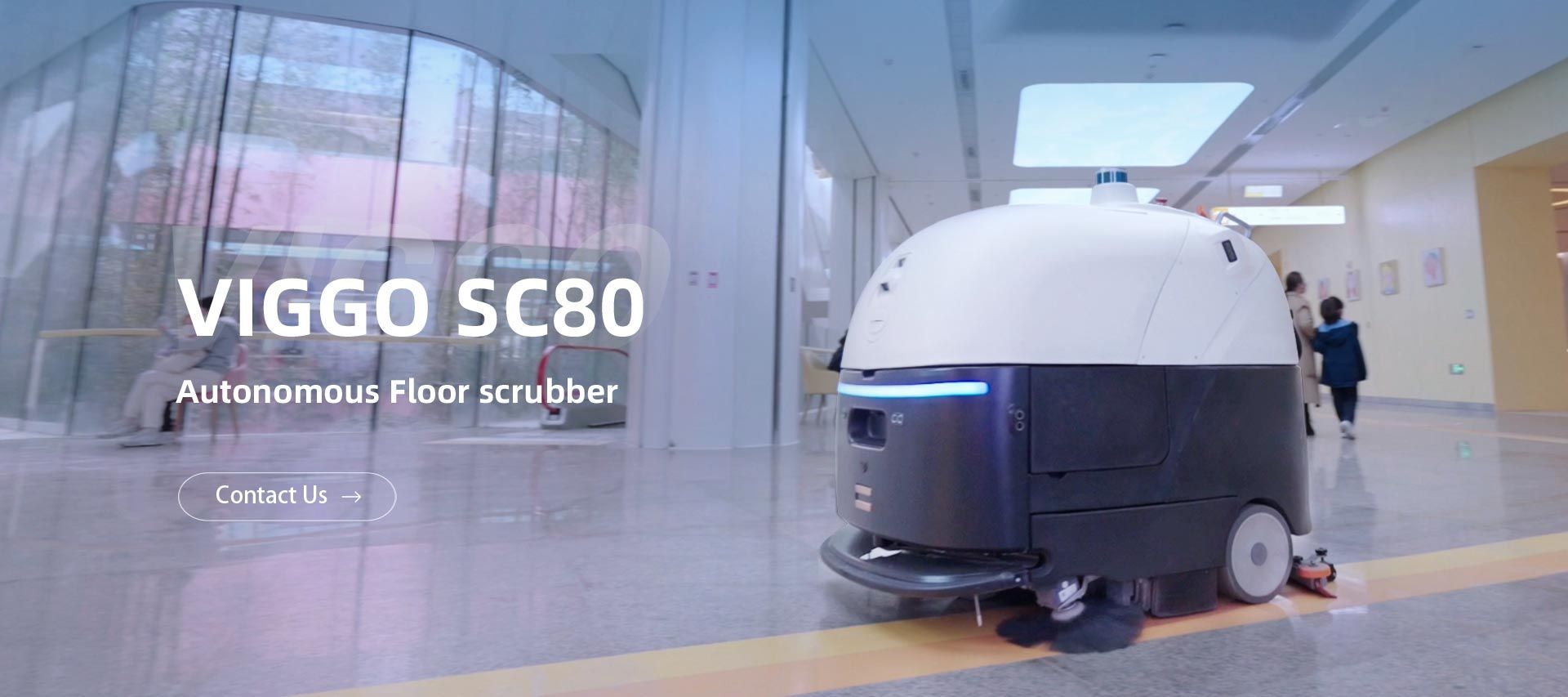

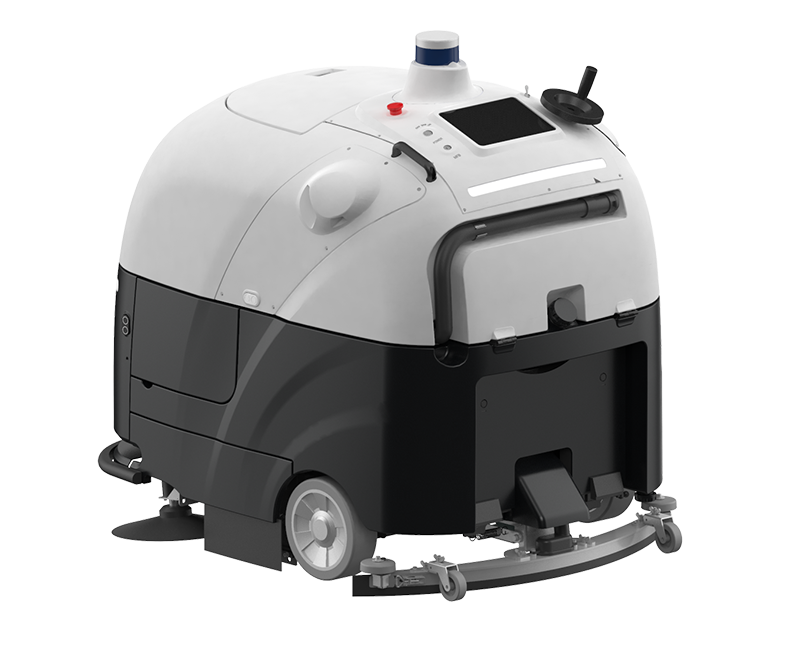

VIGGO SC80
Viggo SC80 autonomous floor scrubber is suitable for medium and large indoor/outdoor scenarios. It can maximize the cleaning effect and minimize the cost. The autonomous floor scrubber is affordable, and the operating cost is far lower than manual cleaning. Moreover, the autonomous floor scrubber uses a filter. The net and brush are very durable and can effectively maintain the long-term and stable operation of the equipment.
Adaptive cleaning
Remarkable Efficiency
High-quality cleaning

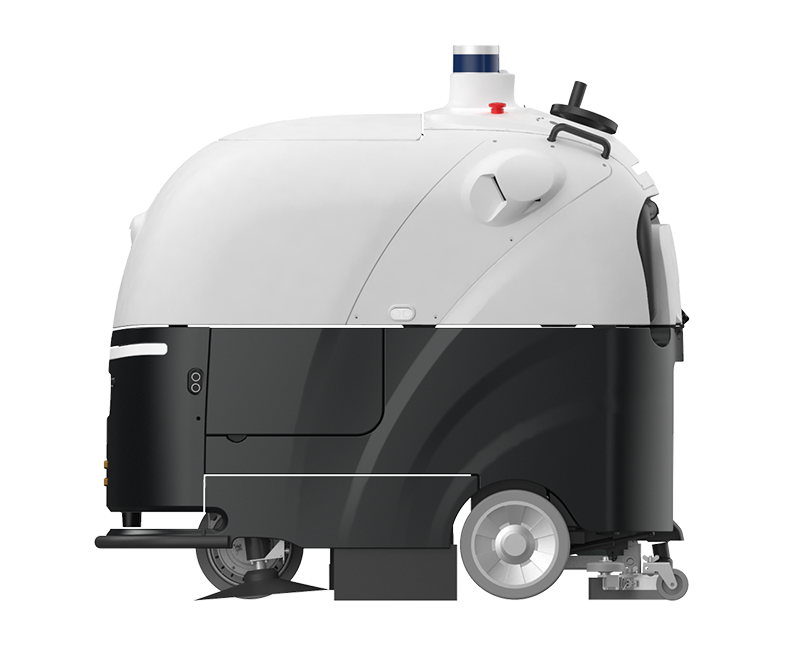

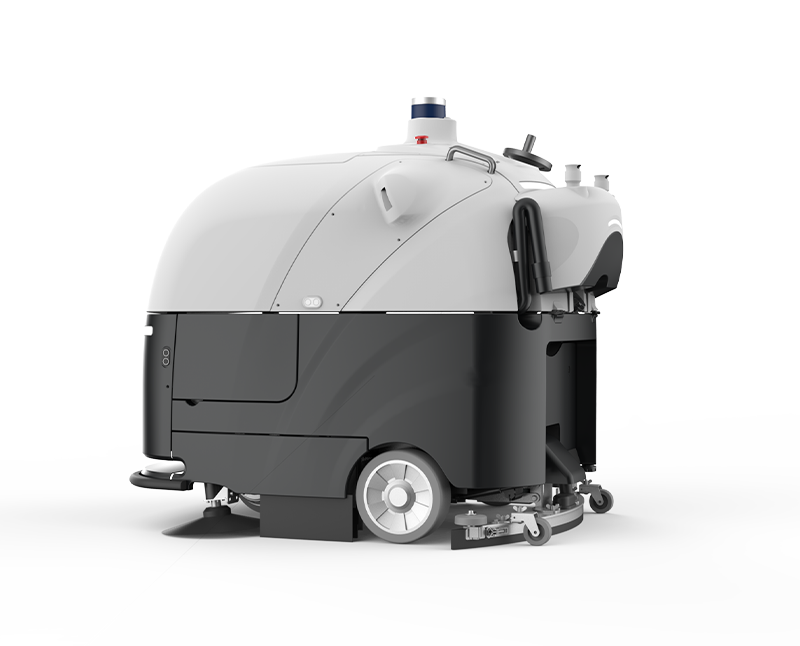

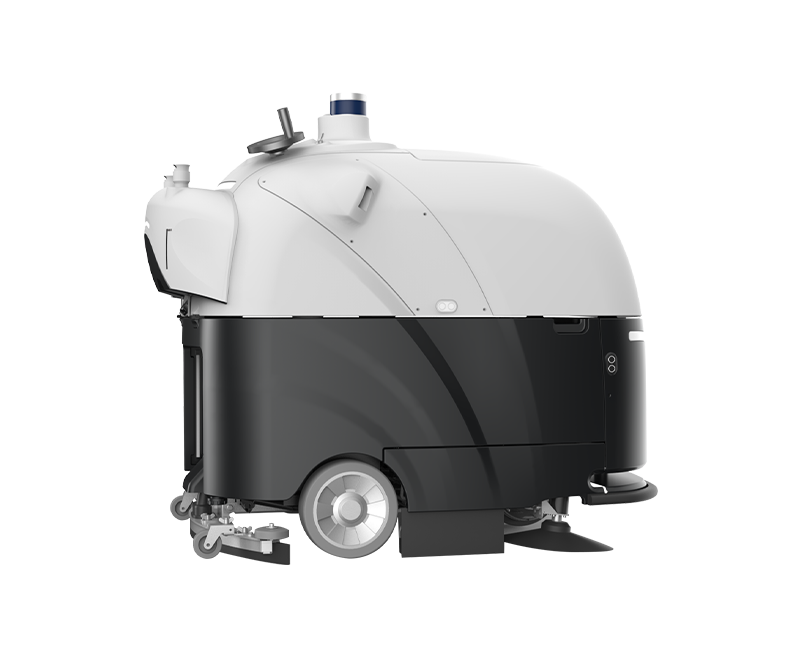

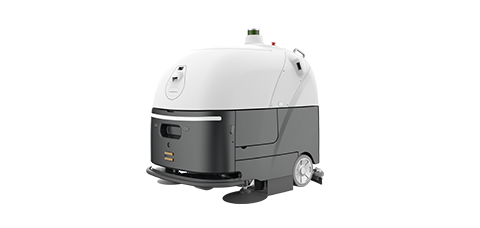

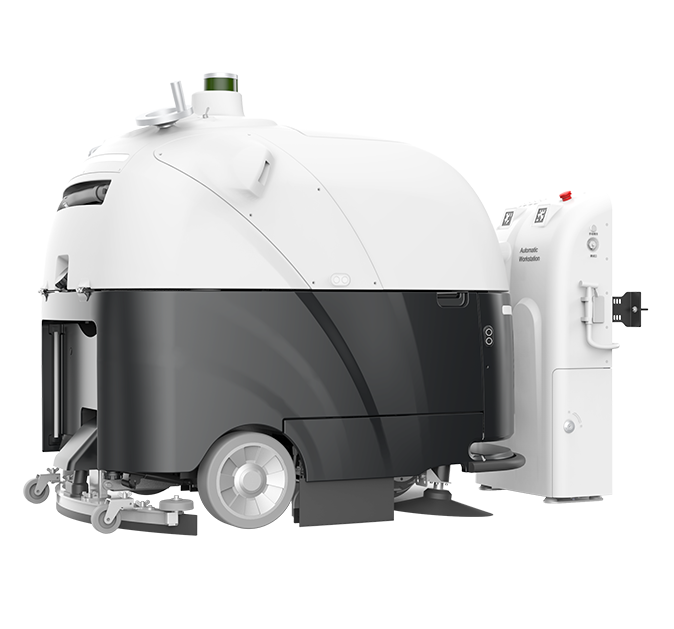

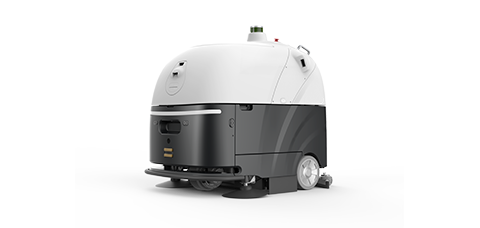

VIGGO SC80S
Suitable for large and medium-sized indoor/outdoor scenes
All-in-one
Fully automatic operation
User-friendly design

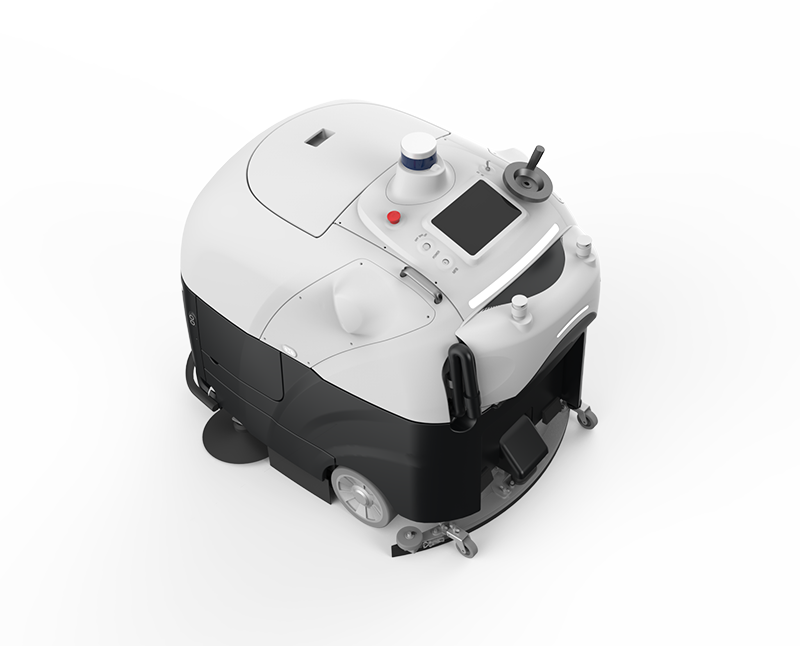

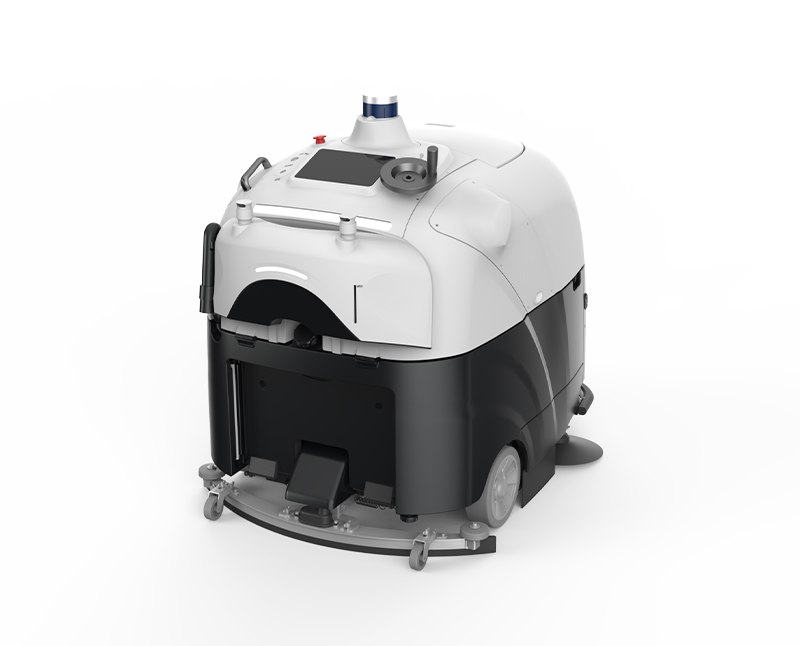

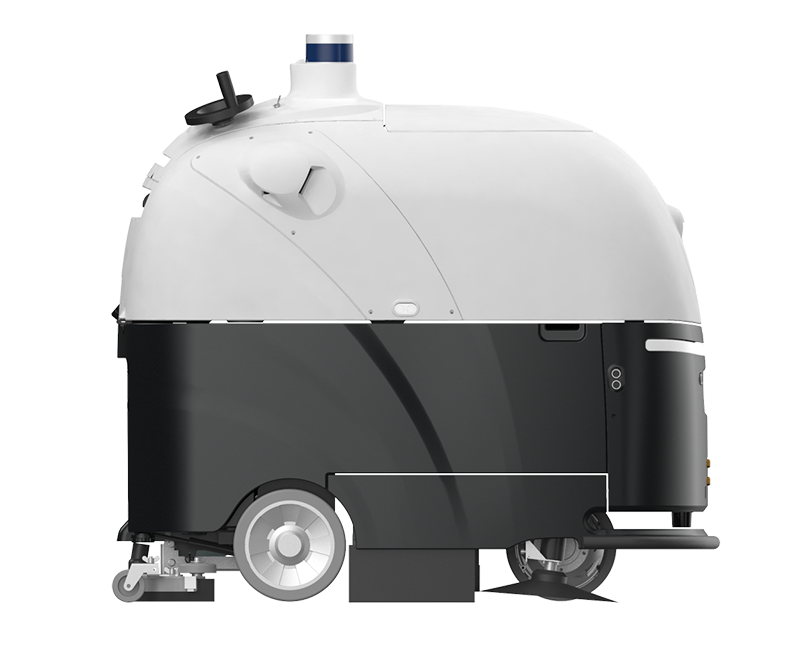

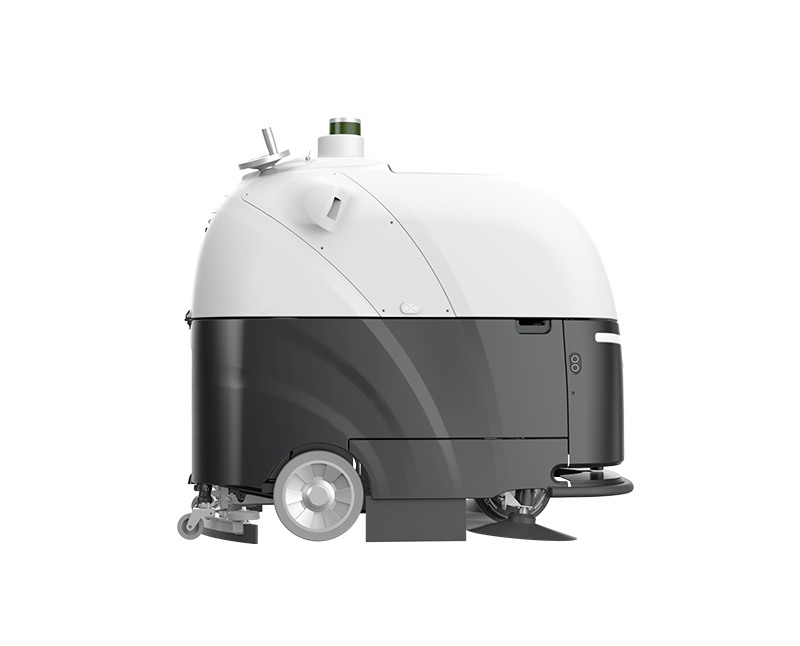

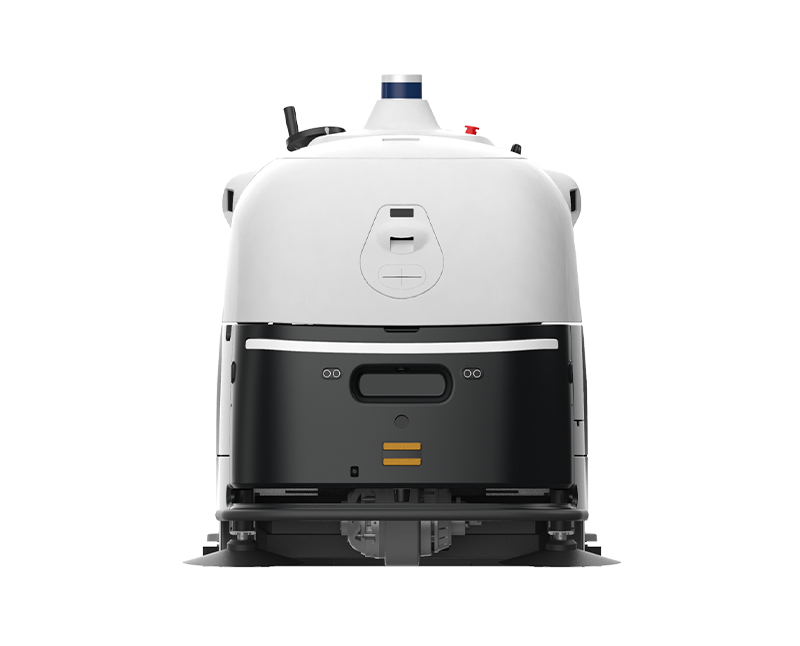

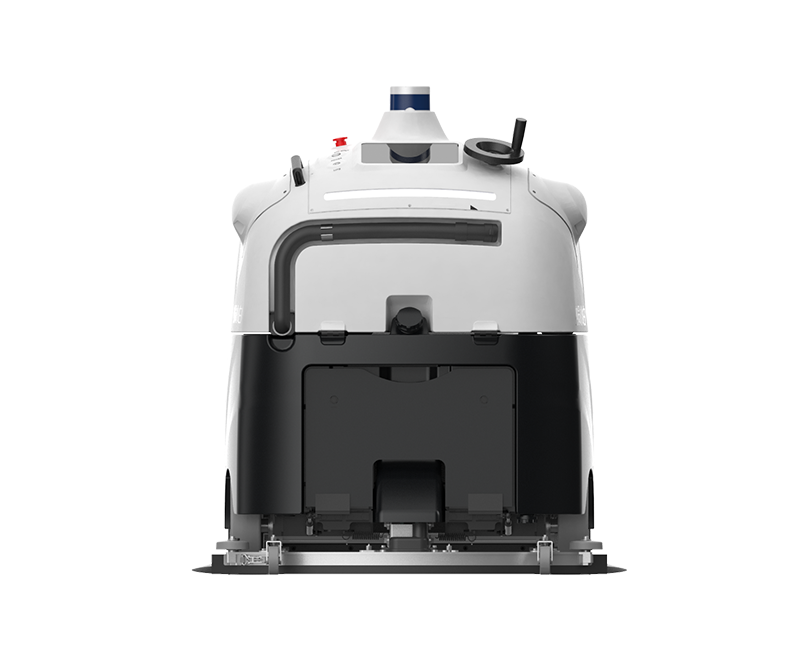

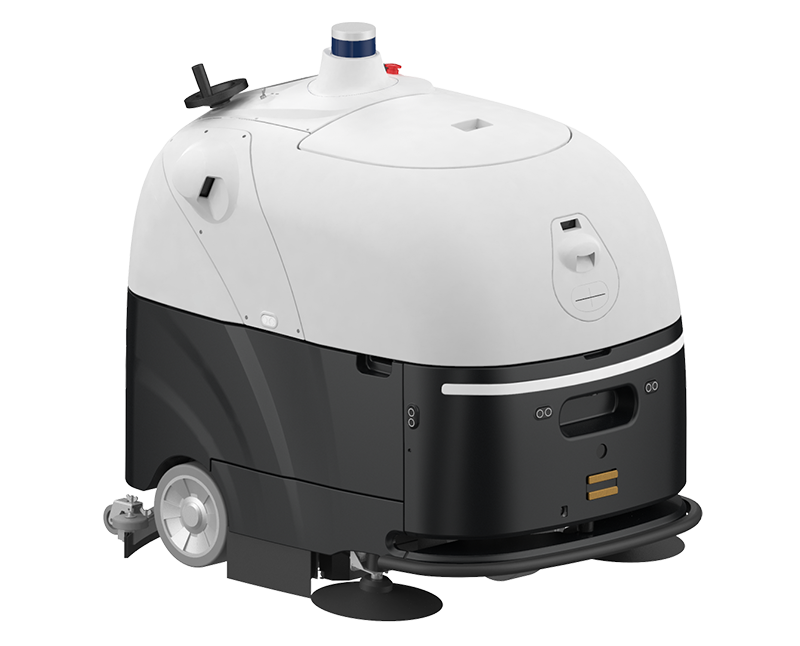

VIGGO SC80Pro
Suitable for large and medium-sized indoor/outdoor low light scenes
Warning function
Fully automatic operation
Professional cleaning
PRODUCT FEATURES
Adaptive Cleaning
Automatically adjustable roller brush, adaptable to various floors.
Remarkable Efficiency
Enable a cleaning efficiency of up to 4,000 m2/h.
Long Time Operation
Deliver excellent runtime of up to 4-6 hours with 36 V/200 Ah high-capacity battery, 140 L water purification tank and 170 L sewage tank.
Ultimate Freedom
Support timed tasks, automatic wake-ups, and scheduled operations.
High Quality Cleaning
No filtration, higher cleaning quality, lower cost on consumables and maintenance

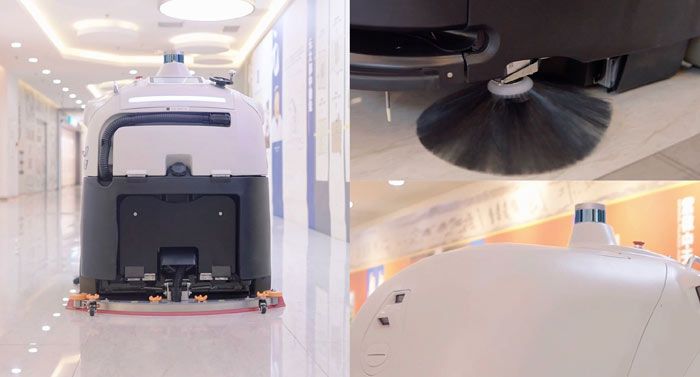

Professional Cleaner
Double roller brushes+double side brushes, low risk of blocking the suction pipe, fully automatic during the operation process
Warnings & Alerts
Come with warning lights, giving the position of the floor scrubber in various environments to ensure the safety of people and the device.
Easy To Manage
Automatically upload operation reports. Data reports are available at your fingertips.
PRODUCT ADVANTAGES
01
ADVANTAGE

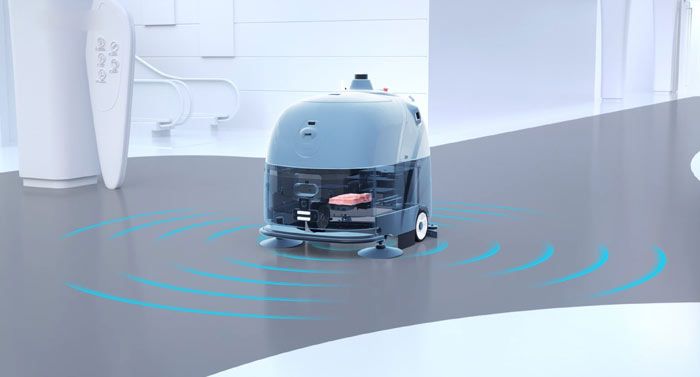

Accurate positioning and identification
SC80 has multi-line laser + single-line laser + RGBD + ultrasonic + anti-collision sensors. SC80 is designed with a variety of sensors fusion multi-mode obstacle avoidance algorithms, which helps to improve the SC80 in the scene of obstacles in recognition of accuracy and speed, to ensure the safety of the recognition ability; washing the tower in operation, to avoid causing property damage;
02
ADVANTAGE
Cleaning efficiency improvement
Autonomous driving brain algorithm support, and more efficient and reasonable path planning algorithm, help ensure the safety of the scrubber and at the same time improve the cleaning efficiency of the scrubber, with more daily recycling cleaning times;
03
ADVANTAGE
Long time worry-free cleaning
200Ah large capacity battery, super large cleaning water tank and sewage tank with total capacity of 210L, and automatic charging and drainage workstation, make SC80 worry and trouble free, without too much human intervention;
APPLICABLE GROUND
Ceramic Tile
Epoxy Floor
Rubble
Terrazzo
Marble
Small Square Tile
Silicon Carbide
Cement Floor
INTELLIGENT CLEANING, SCENARIO-BASED SOLUTION

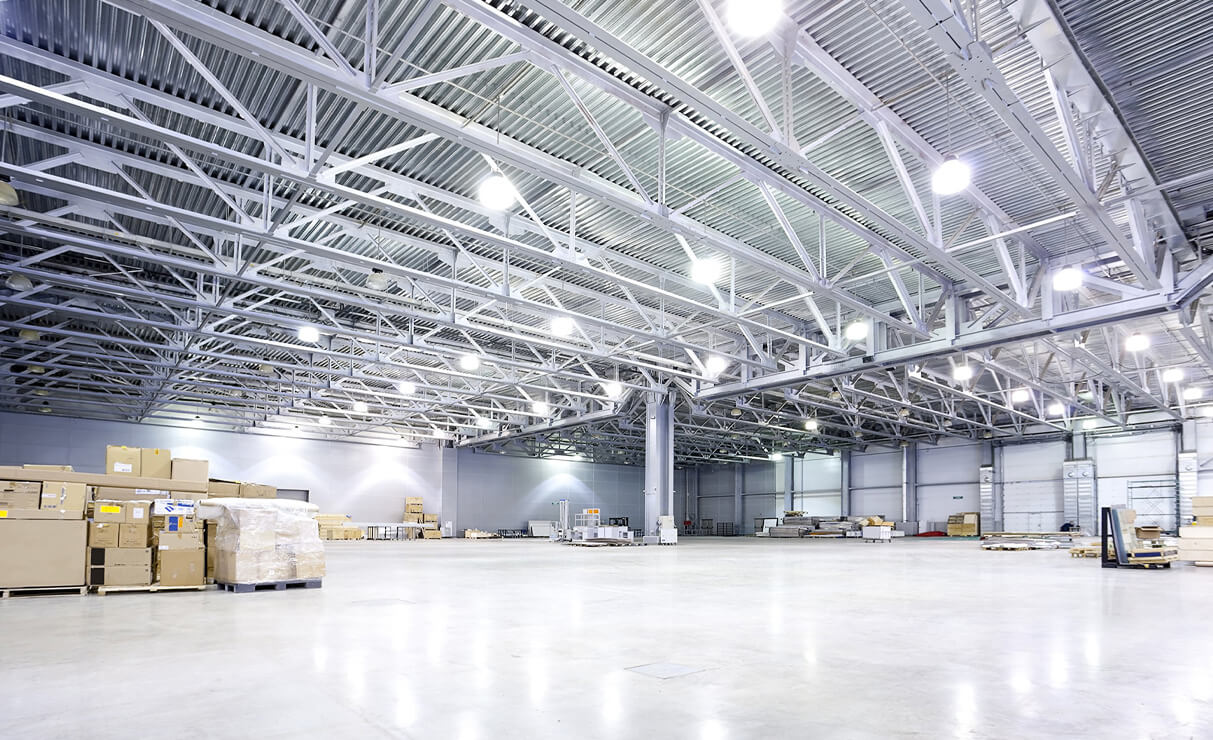

Industrial Scenario Solutions
Commercial Complex Scenario Solutions

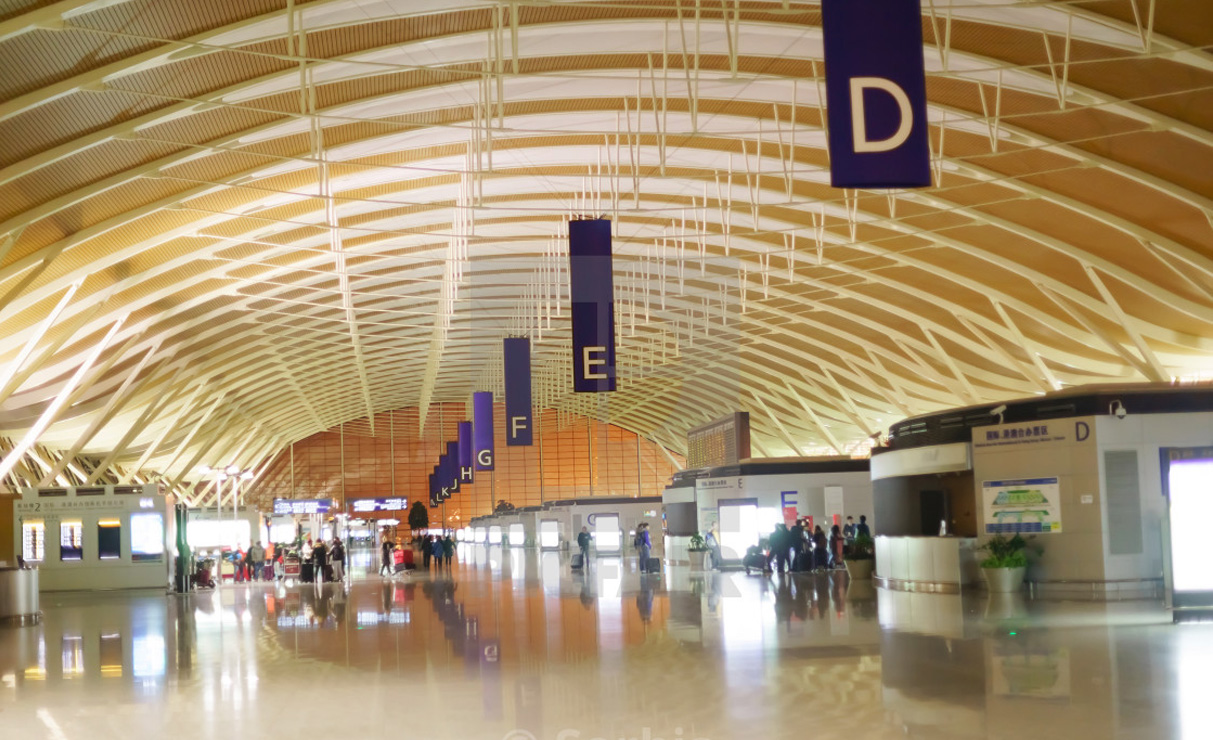

Transportation Scenario Solutions
PARAMETER SPECIFICATIONS
SC80
SC80S
SC80Pro
Basic parameters
Size
1340（L）*1024（W）*1350（H）mm
Size
1470（L）*1030（W）*1350（H）mm
Size
1340（L）*1024（W）*1350（H）mm
Weight
400Kg
Weight
400Kg
Weight
400Kg
Battery Capacity
36V/200Ah
Battery Capacity
36V/200Ah
Battery Capacity
36V/200Ah
Battery Usage Time
4~6h
Battery Usage Time
4~6h
Battery Usage Time
4~6h
Cleaning parameters
Cleaning Width
1160mm
Cleaning Width
1160mm
Cleaning Width
1160mm
Washing Width
800mm
Washing Width
800mm
Washing Width
800mm
Squeegee Width
1024mm
Squeegee Width
1024mm
Squeegee Width
1024mm
Max Cleaning Efficiency
4000㎡/h
Max Cleaning Efficiency
4000㎡/h
Max Cleaning Efficiency
4000㎡/h
Clean Water Tank
140L
Clean Water Tank
140L
Clean Water Tank
140L
Sewage Tank
170L
Sewage Tank
170L
Sewage Tank
170L
Trash Can
1.5L
Trash Can
1.5L
Trash Can
1.5L
Sensor Type
Core Sensor
Multi-line lidar*1
Core Sensor
Multi-line lidar*1
Core Sensor
Multi-line lidar*1
Core Sensor
Single-line lidar*1
Core Sensor
Single-line lidar*1
Core Sensor
Single-line lidar*1
Core Sensor
Ultrasonic*6
Core Sensor
Ultrasonic*6
Core Sensor
Ultrasonic*6
Core Sensor
Vision Sensor*3
Core Sensor
Vision Sensor*3
Core Sensor
Vision Sensor*3
Other Sensors
Wheel Speedometer，IMU，Collision Detection Sensor，Anti Drop Sensor
Other Sensors
Wheel Speedometer，IMU，Collision Detection Sensor，Anti Drop Sensor
Other Sensors
Wheel Speedometer，IMU，Collision Detection Sensor，Anti Drop Sensor
Other Parameters
Spray Tank Volume
-
Spray Tank Volume
5L
Spray Tank Volume
-
Atomized Particles
-
Atomized Particles
＜10μm
Atomized Particles
-
Max Amount of Atomization
-
Max Amount of Atomization
1.5L/h
Max Amount of Atomization
-
Atomization Volume Control
-
Atomization Volume Control
3 gears adjustable
Atomization Volume Control
-
Spray Function Water Adding Method
-
Spray Function Water Adding Method
Add water on top
Spray Function Water Adding Method
-

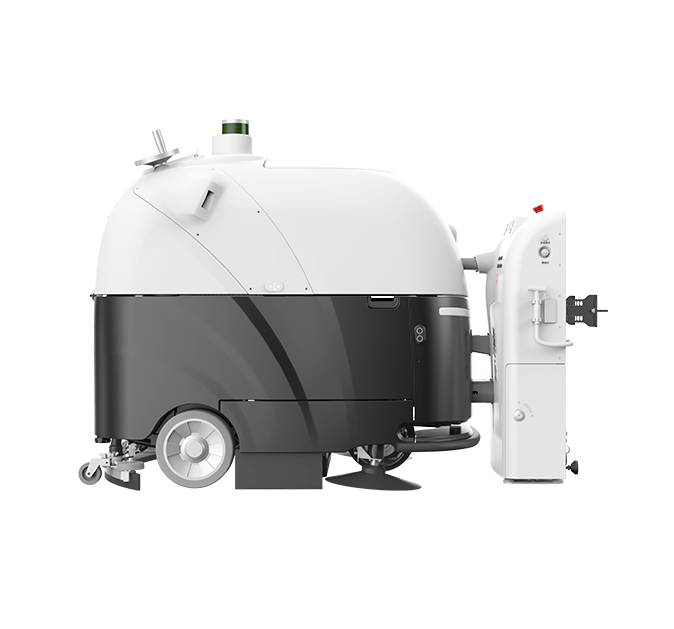

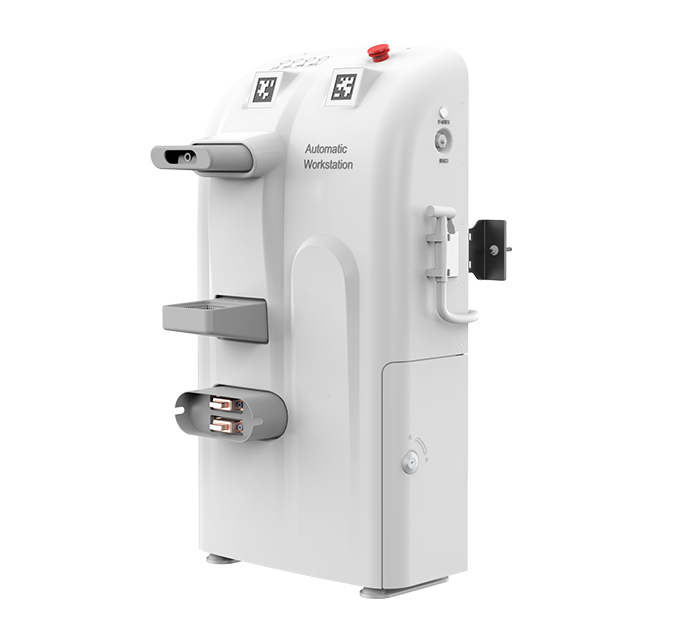

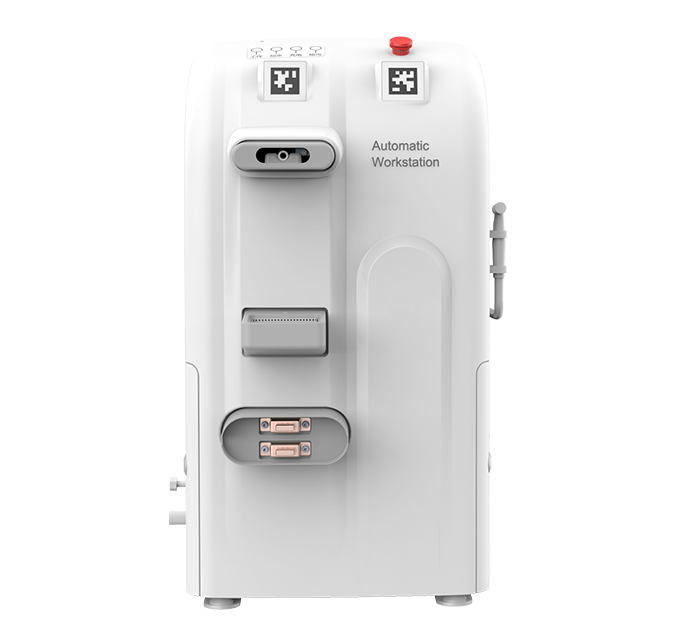

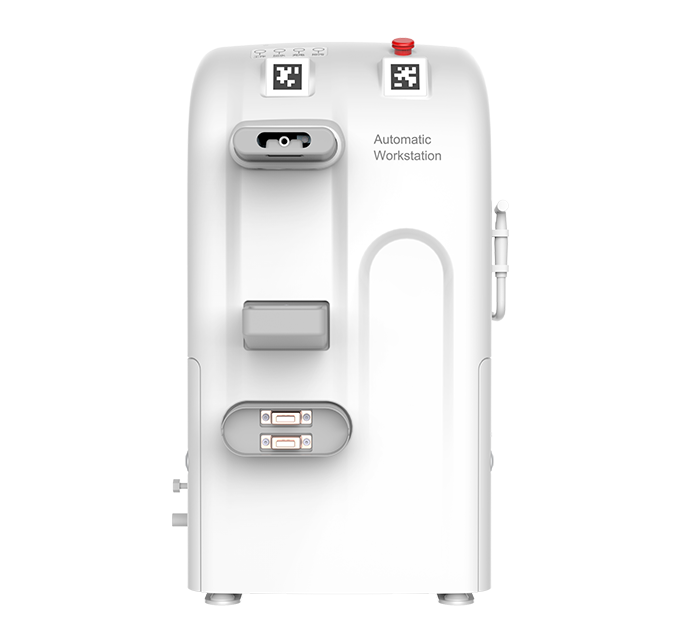

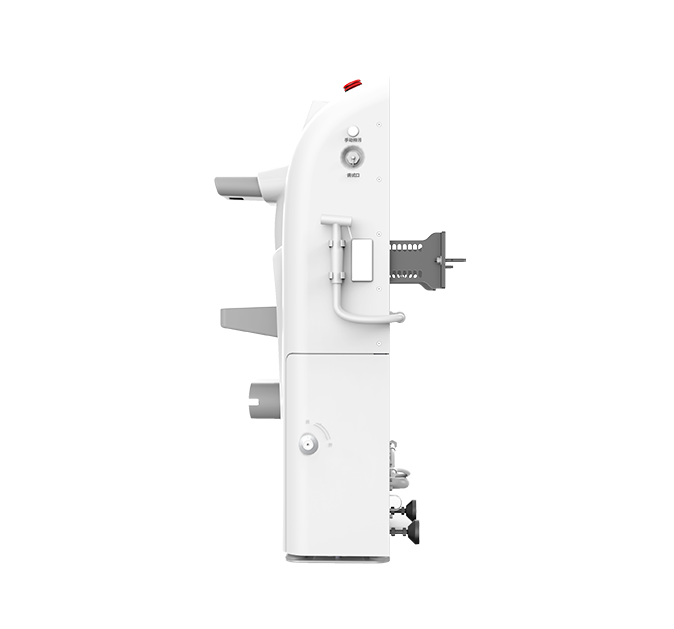

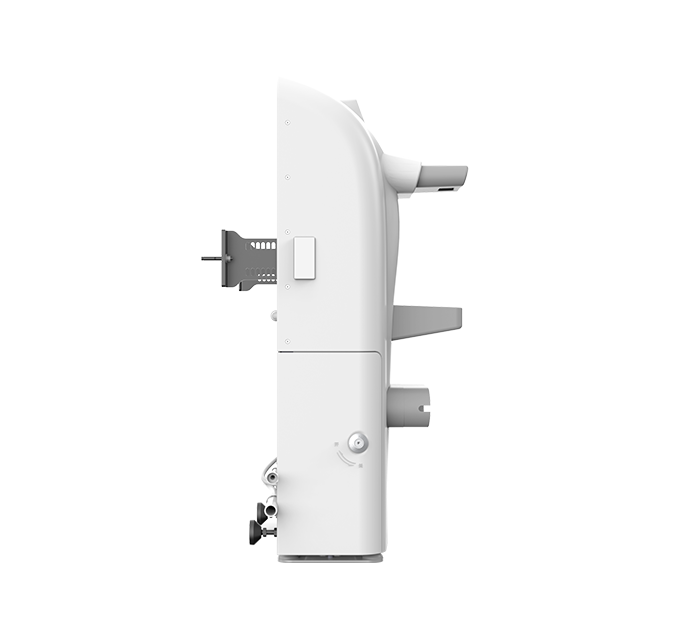

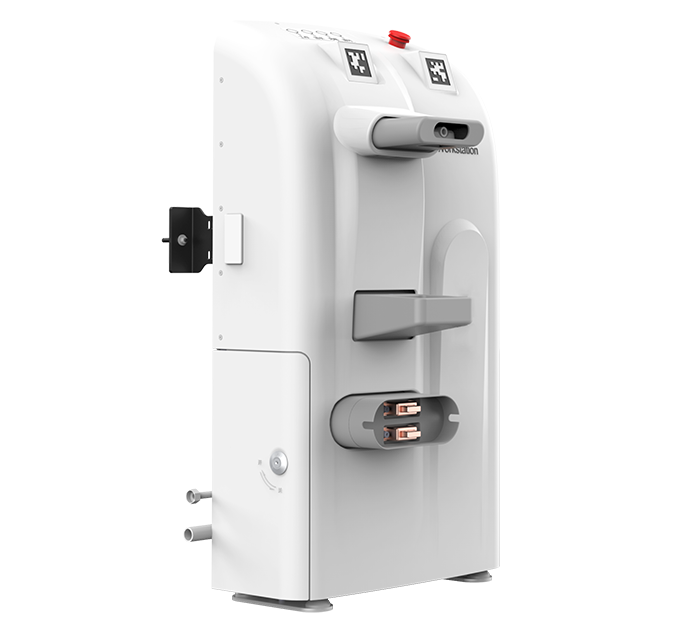

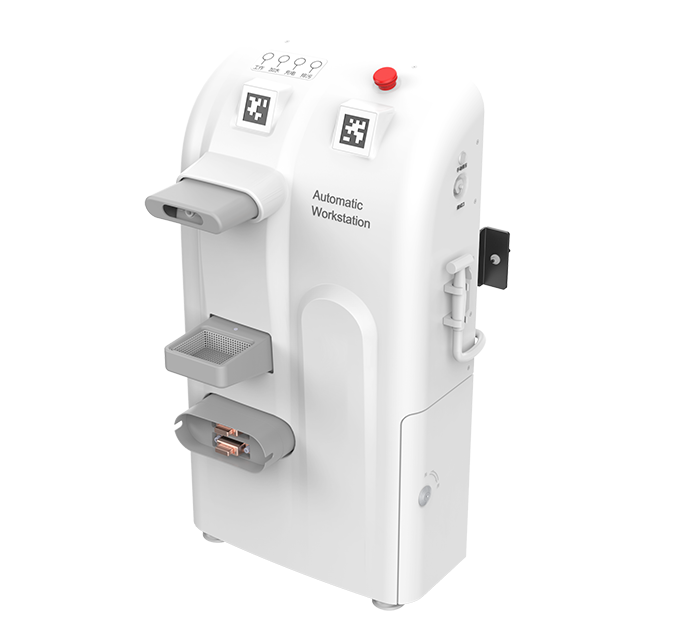

Workstation
WSC80
VIGGO Workstation

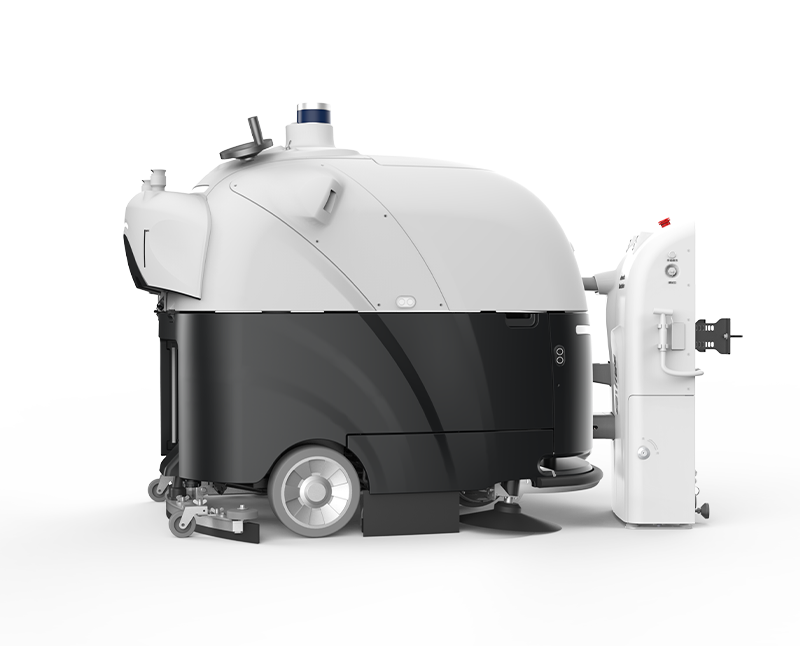

The workstation is an optional device(standard with charger) and serves to provide replenishment support to the vehicle, which can help lessen the frequency of manual intervention and boost HR efficiency.
With the rapid development of technology, automation technology is constantly changing our way of life. As an innovation in the field of cleaning, autonomous floor scrubbers are leading the future of cleaning services. The Viggo SC80 autonomous floor scrubber is an outstanding product that integrates high-precision positioning and recognition technology, meeting customers' cleaning needs with excellent performance and intelligent functions.
A multi-purpose universal intelligent floor scrubber with precise environment sensing, automatic path planning, autonomous obstacle avoidance, automatic charging, automatic watering and drainage, etc. It is suitable for large and medium-sized indoor and outdoor applications such as industrial warehousing, exhibition halls, and squares outside building scenes.
The high-precision positioning and recognition technology of the Viggo SC80 autonomous floor scrubber brings new prospects for cleaning services. The Viggo SC80 autonomous floor scrubber meets the cleaning needs of customers with excellent performance and intelligent functions. It is not only an efficient and high-quality cleaning tool, but also a model of integrating modern technology into daily cleaning work.It is our commitment to you to liberate your hands and be fully automatic.
If you have any needs in this regard, you can contact us. Viggo will also provide customized cleaning solutions for you. We can save you time and manpower, and we will create a more comfortable and clean living environment for customers.
